Direct Radiography (DR)

While the price tag tends to be a bit higher for a DR solution compared to a CR system, the time saved in the x-ray process and the greater picture quality make up for the additional cost. Typically, DR panels can come in various shapes and sizes, but usually they are at least 14"x17" in size and allow for immediate transfer from the DR detector to the computer screen.

Purchasing a DR solution also does not mean you will need to replace your current x-ray room; many times a DR Flat Panel will retrofit to your current x-ray system. But if you do need to upgrade your entire x-ray room, you can still obtain a quality DR solution without breaking the bank.

Take a gander at the DR options listed below and let us know how we can assist you. And if you don't see what you're looking for below, we almost certainly can get it; just contact us.

Please note: We do NOT carry CCD or CMOS imaging solutions due to their lower image quality and outdated technology.

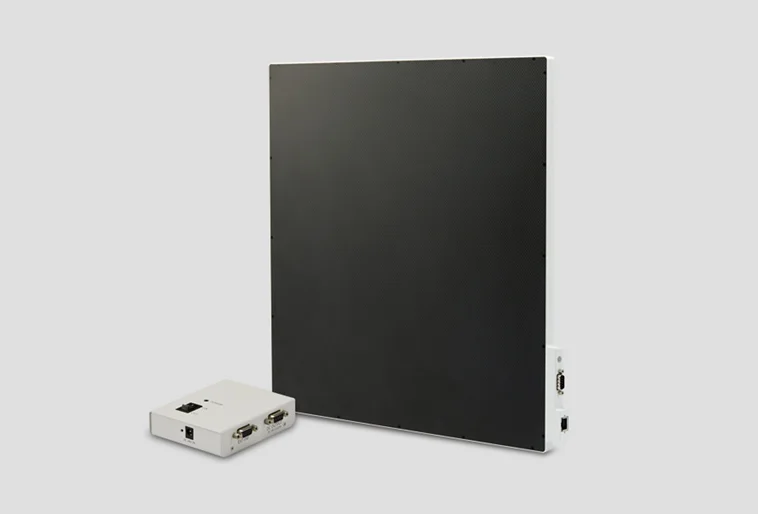

Vieworks 17x17 Cassette-Size DR Panel

• A Vieworks flat panel DR system with a large field coverage area of 17x17 inches that slides into most wall stand trays.

• Designed for general radiographic application, using its unique image processing system and proprietary flat panel technology to generate excellent images with superb ease.

• Available with a Cesium Iodide (CsI) or Gadolinium OxySulfide (GdOS) scintillator, the active 3072x3072 pixel area with a 3.5 lp/mm spatial resolution ensures superior image quality for precise diagnostic performance in a user-friendly software platform.

• Can be used without any connections to the X-ray generator with our patented AED (Automatic Exposure Detection) circuit included on all Vieworks flat panel detector series. In this way the DR panel can retrofit with any x-ray machine, as it is triggered by the radiation and not by a generator interface connection.

• User friendly imaging software (Model: VXvue) with DICOM 3.0 standard provides consistent image quality at a dramatically reduced dose and faster image information with optimized algorithms for each different study. Image can be simply acquired and transmitted to the DICOM server through Gigabit Ethernet in seconds.

• Can be installed in a single, dual or multiple detector-configurations depending on the required applications.

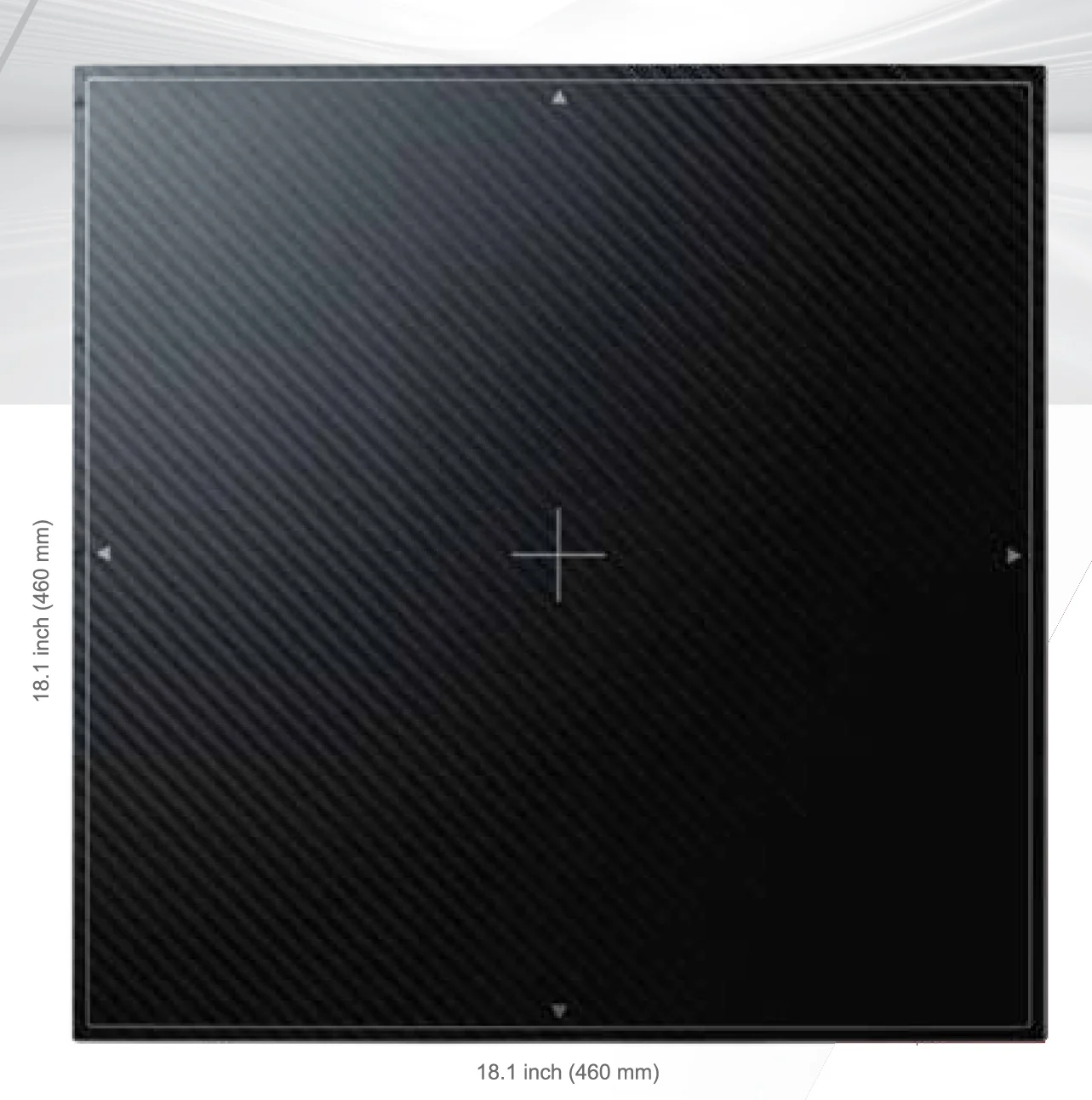

Rayence 17x17 Cassette-Size DR Panel

• A Rayence flat panel DR system with a large field coverage area of 17x17 inches that slides into most wall stand trays.

• Designed for general radiographic application, using its unique image processing system and proprietary flat panel technology to generate excellent images with superb ease.

• Available with a Cesium Iodide (CsI) or Gadolinium OxySulfide (GdOS) scintillator, the active 3328x3328 pixel area with a 3.9 lp/mm spatial resolution ensures superior image quality for precise diagnostic performance in a user-friendly software platform.

• Can be used without any connections to the X-ray generator with patented AED (Automatic Exposure Detection) circuit included on all Rayence flat panel detector series. In this way the DR panel can retrofit with any x-ray machine, as it is triggered by the radiation and not by a generator interface connection.

• User friendly imaging Xmaru software with DICOM 3.0 standard provides consistent image quality at a dramatically reduced dose and faster image information with optimized algorithms for each different study. Image can be simply acquired and transmitted to the DICOM server through Gigabit Ethernet in seconds.

• Can be installed in a single, dual or multiple detector-configurations depending on the required applications.

Vieworks 14x17 Wireless DR Panel

• The Vieworks 14x17 wireless DR panel offers AED (Automatic Exposure Detection) and is a superb imaging solution for any practice, offering rapid workflow & user-friendly software.

• The sleek design is identical in dimension to most film and CR cassettes, so a retrofit situation usually requires no adjustment to existing bucky trays.

• Each detector has a built-in wireless Access Point (AP), which enables the transmission of x-rays directly to a PC or laptop. In the event the connection is compromised, the detector can save up to 100 images on its built-in memory; when communication resumes, all saved images can be transmitted to the software.

• This panel can be installed in a single, dual or multiple detector-configuration depending on the required applications.

• Unique electronics hardware with 14-bit signal digitization provides an extremely wide dynamic range and optimized algorithms for each different body part.

• Communication interface through WLAN (IEEE 802.11n):
  • Dual bandwidth (2.4GHz and 5GHz) with two antennas
  • Optional tether cable can allow an image acquisition and transmission through Gigabit Ethernet interface
  • Perfect solution for retrofit from conventional film X-ray systems to digital radiography systems

• Full compatibility with DICOM 3.0 standard and Windows™ based platform
  • Automatic Exposure Detection (AED) trigger mode as well as the line trigger modes
  • Various preset image processing modes for different studies

• Brilliant Modulation Transfer Function (MTF), superior diagnostic image quality through flat panel detector with the proven technology of VXvue image processing software

• Dramatically reduced X-ray dose for patient safety during an examination.

• Other specifications:

  • Sensor Type: Amorphous Silicon with TFT with pin diode

  • Scintillator: Cesium Iodide (CsI) or Gadolinium OxySulfide (GdOS)

  • Dimensions: 460 mm (W) x 384 mm (L) x 15 mm (T)

  • Pixels: 2560 x 3072

  • Pixel Pitch: 140 µm

  • Grayscale: 16,384 steps

  • Data Acquisition Time: 3 sec.

  • A/D Converstion: 14bit

Rayence 14x17 Wireless DR Panel

• The Rayence 14x17 wireless DR panel offers AED (Automatic Exposure Detection) and is a superb imaging solution for any practice, offering rapid workflow & user-friendly software.

• The sleek design is identical in dimension to most film and CR cassettes, so a retrofit situation usually requires no adjustment to existing bucky trays.

• Each detector has a built-in wireless Access Point (AP), which enables the transmission of x-rays directly to a PC or laptop. In the event the connection is compromised, the detector can save up to 200 images on its built-in memory; when communication resumes, all saved images can be transmitted to the software.

• This panel can be installed in a single, dual or multiple detector-configuration depending on the required applications.

• Communication interface through WLAN (IEEE 802.11n):
  • Dual bandwidth (2.4GHz and 5GHz) with two antennas
  • Optional tether cable can allow an image acquisition and transmission through Gigabit Ethernet interface
  • Perfect solution for retrofit from conventional film X-ray systems to digital radiography systems

• Full compatibility with DICOM 3.0 standard and Windows™ based platform
  • Automatic Exposure Detection (AED) trigger mode as well as the line trigger modes
  • Various preset image processing modes for different studies

• Dramatically reduced X-ray dose for patient safety during an examination.

• IPX6 Water Resistant makes accidental spills of fluids on the panel less concerning.

• Other specifications:

  • Sensor Type: Amorphous Silicon with TFT with pin diode

  • Scintillator: Cesium Iodide (CsI) or Gadolinium OxySulfide (GdOS)

  • Dimensions: 18.1 in. (L) x 15.1 in. (W) x 0.6 in. (T)

  • Pixels: 2756 x 3268

  • Pixel Pitch: 127 µm

  • Weight: 6.6 lbs (including a battery)

  • Data Acquisition Time: 2 sec.

  • A/D Converstion: 14-bit (Gadox) and 16-bit (Cesium-Iodide)

PerkinElmer XRpad 4336 Wireless DR Panel

• The PerkinElmer XRpad 4336 Wireless 14x17 DR Panel is at the top of its class! Featuring a 15 million pixel image matrix, a best-in-class 100 μm pixel pitch, and a directly deposited CsI scintillator, the PerkinElmer XRpad provides exceptional image quality (few panels can compare; see for yourself)! With the current savings we can offer, you'll get one of the best resolutions for a great price!

• The XRpad is a light weight and cassette-sized flat panel detector that fits into a conventional table or wall-stand bucky. It offers a true 35x43 cm2 imaging area per the ISO 4090 cassette standard.

• Single-piece carbon-fiber construction for the front and back housing allows for easier placement and cleaning.

• Automatic Exposure Detection (AED) simplifies integration. PerkinElmer boasts more than 20 years of experience partnering with OEMs integrating Flat Panel Detec-tors (FPDs) into demanding X-ray applications.

• System comes with at least two rechargeable batteries and battery docking station (additional batteries can be added).

Features and Benefits:

• Direct deposition Csl, for excellent image quality

• Wireless 802.11n standard

• Integrated status display

• Two Rechargeable batteries and Charging Station

• Optional connector for power and data communication

• Cassette-sized detector per ISO 4090, fits in conventional Bucky

• Ultra-high resolution 4320x4320 (18MP) Pixel Matrix

• High resolution 100 μm pixel pitch

• 16 bit Dynamic Range displays up to 65,536 gray levels

• Automatic Exposure Detection (AED)

PerkinElmer XRpad 4343 Tethered DR Panel

The PerkinElmer XRpad 4343 Tethered 17x17 DR Panel is at the top of its class! Featuring a 15 million pixel image matrix, a best-in-class 100 μm pixel pitch, and a directly deposited CsI scintillator, the PerkinElmer XRpad provides exceptional image quality (see how the similarly built wireless panel compares)! With the current savings we can offer, you'll get one of the best resolutions for a great price!

The XRPad is a light weight and cassette-sized flat panel detector that fits into a conventional table or wall-stand bucky. It offers a true 35x43 cm2 imaging area per the ISO 4090 cassette standard is provided, along with a removable rechargeable battery.

Single-piece carbon-fiber construction for the front and back housing allows for easier placement and cleaning. Automatic Exposure Detection (AED) simplifies integration. PerkinElmer boasts more than 20 years of experience partnering with OEMs integrating Flat Panel Detec-tors (FPDs) into demanding X-ray applications.

Panel is available in either Medical or Veterinary configurations.

Features and Benefits:

• Cassette-sized detector per ISO 4090, fits in conventional Bucky

• Ultra-high resolution 4320x4320 (18MP) Pixel Matrix

• High resolution 100 μm pixel pitch

• 16 bit Dynamic Range displays up to 65,536 gray levels

• Automatic Exposure Detection (AED)

Not seeing what you're looking for? Call us @ 800 543-4424
