Vieworks 14x17 Wireless DR Panel

  • The Vieworks 14x17 wireless DR panel offers AED (Automatic Exposure Detection) & is an superb imaging solution for any practice, offering rapid workflow & user-friendly software.
  • The sleek design is identical to most cassettes, so the panel requires no adjustment to existing bucky trays.
  • Each detector has a built-in wireless Access Point (AP), which enables the transmission of x-rays directly to a Wi-Fi enabled PC or laptop. In the event the Wi-Fi is compromised, the detector can save up to 100 images on its built-in memory card. Once communication resumes with the computer, all saved images can be transmitted to the software.
  • This panel can be installed in a single, dual or multiple detector-configuration depending on the required applications.
  • Unique electronics hardware with 14-bit signal digitization provides an extremely wide dynamic range and optimized algorithms for each different body part
  • The panel weighs under 3.4 kg and
  • Communication interface through WLAN (IEEE 802.11n)
    • Dual bandwidth (2.4GHz and 5GHz) with two antennas
    • Optional tether cable can allow an image acquisition and transmission through Gigabit Ethernet interface
    • Perfect solution for retrofit from conventional film X-ray systems to digital radiography systems
  • Full compatibility with DICOM 3.0 standard and Windows™ based platform
    • Automatic Exposure Detection (AED) trigger mode as well as the line trigger modes
    • Various preset image processing modes for different studies
  • Brilliant Modulation Transfer Function (MTF), superior diagnostic image quality through flat panel detector with the proven technology of VXvue image processing software
  • Dramatically reduced X-ray dose for patient safety during an examination.
  • Other specifications:
    •  Sensor Type: Amorphous Silicon with TFT with pin diode
    • Scintillator: Cesium or Gadolinium Oxysulfide (Gadox)
    • Dimensions: 460 mm (W) x 384 mm (L) x 15 mm (T)
    • Pixels: 2560 mm x 3072 mm
    • Pixel Pitch: 140 µm
    • Grayscale: 16,384 steps
    • Data Acquisition Time: 3 sec.
    • A/D Converstion: 14bit

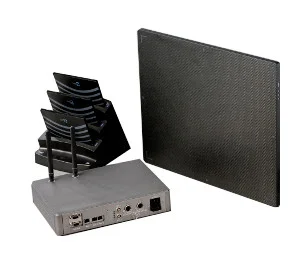

PerkinElmer XRpad 4336 Wireless DR Panel

  • The PerkinElmer XRpad 4336 Wireless 14x17 DR Panel is at the top of its class! Featuring a 15 million pixel image matrix, a best-in-class 100 μm pixel pitch, and a directly deposited CsI scintillator, the PerkinElmer XRpad provides exceptional image quality (few panels can compare; see for yourself)! With the current savings we can offer, you'll get one of the best resolutions for a great price!
  • The XRpad is a light weight and cassette-sized flat panel detector that fits into a conventional table or wall-stand bucky. It offers a true 35x43 cm2 imaging area per the ISO 4090 cassette standard.
  • Single-piece carbon-fiber construction for the front and back housing allows for easier placement and cleaning.
  • Automatic Exposure Detection (AED) simplifies integration. PerkinElmer boasts more than 20 years of experience partnering with OEMs integrating Flat Panel Detec-tors (FPDs) into demanding X-ray applications.
  • System comes with at least two rechargeable batteries and battery docking station (additional batteries can be added).

Features and Benefits:

  • Direct deposition Csl, for excellent image quality
  • Wireless 802.11n standard
  • Integrated status display
  • Two Rechargeable batteries and Charging Station
  • Optional connector for power and data communication
  • Cassette-sized detector per ISO 4090, fits in conventional Bucky
  • Ultra-high resolution 4320x4320 (18MP) Pixel Matrix
  • High resolution 100 μm pixel pitch
  • 16 bit Dynamic Range displays up to 65,536 gray levels
  • Automatic Exposure Detection (AED)
